Precession Vortex Flow Meter

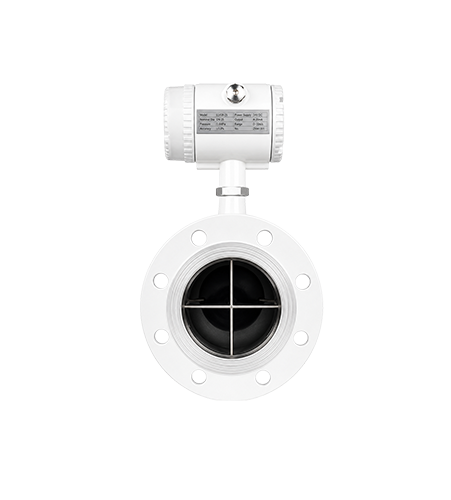

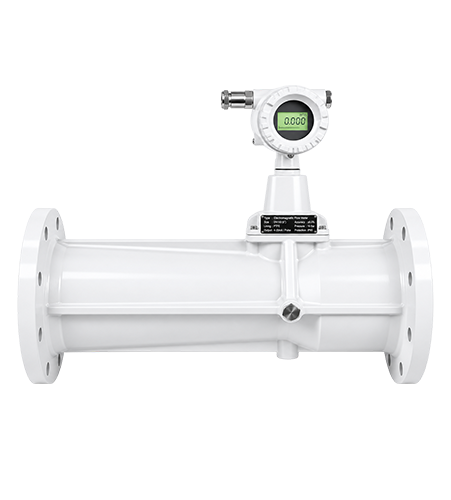

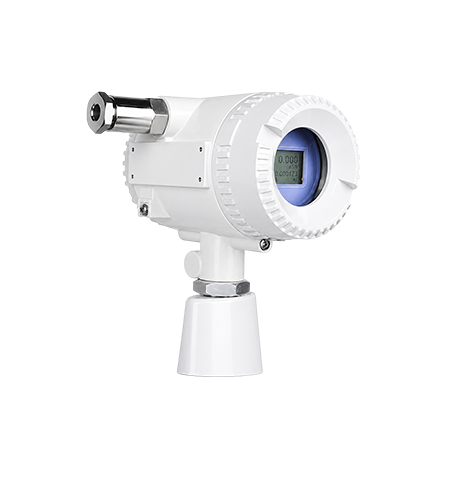

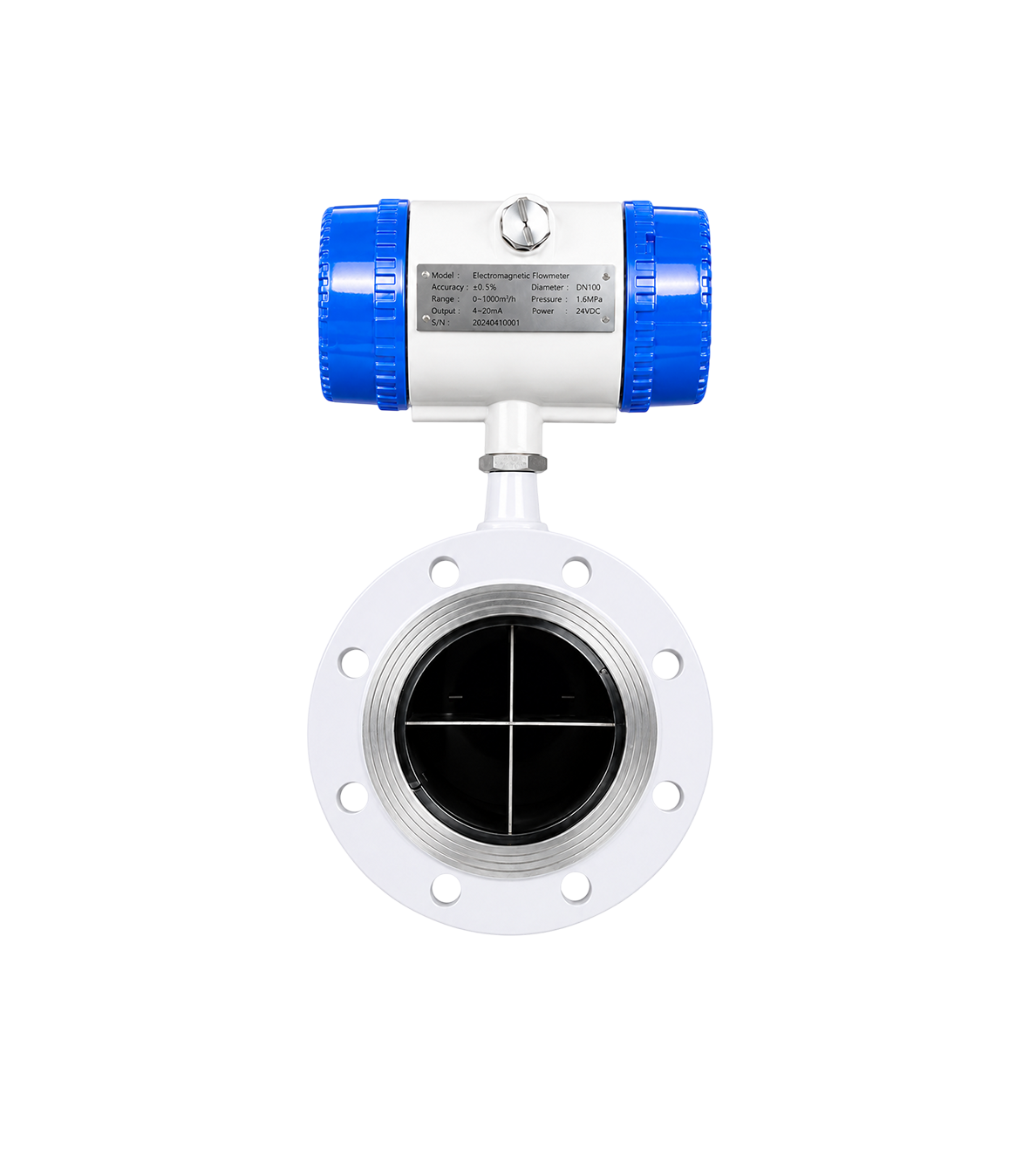

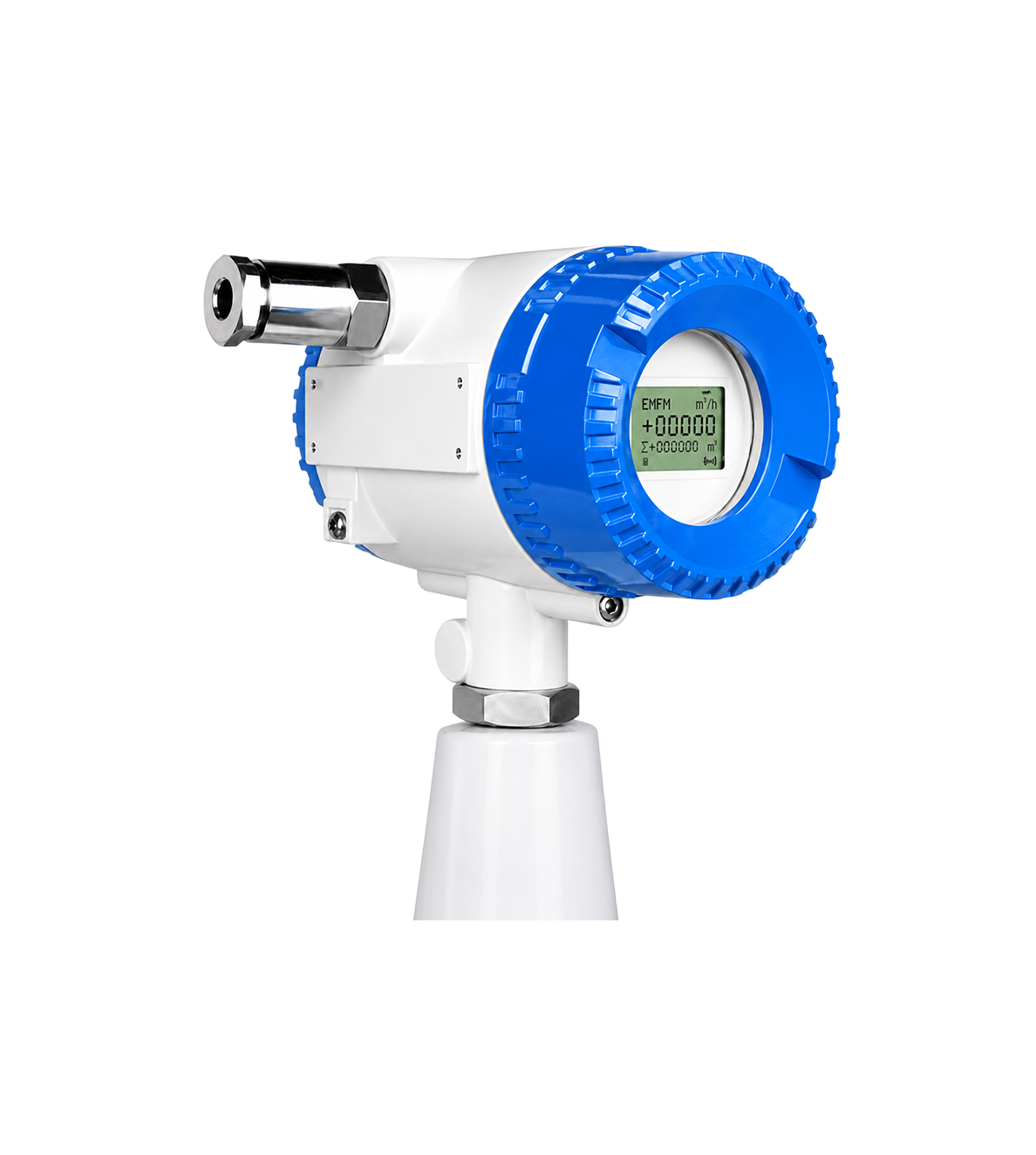

Introduction

Precession Vortex flow meter adopt advanced technology, it is able to measure gas flow at low pressure, multi signal output and hyposensitivity flow disturbance. This flow meter combine the functions of gathering flow, temperature and pressure testing, and could carry out the temperature, pressure and compression factor compensation automatically, Which is widely applied in the measurement of natural gas, coal gasification, liquid gas, light hydrocarbon gas etc., With the new micro processor, it has high reliability and operational precision, This has lead to a superior performance of flow monitoring in an inline gas pipe measurement.

Advantages

Precession Vortex Flowmeter Advantages

• Intelligent flowmeter integrates flow probe, microprocessor, pressure and temperature sensor.
• 16-bit computer chip, high integration, small volume, good performance, strong machine function.
• Adopt new signal processing amplifier and unique filtration technology.
• Dual-detection technology, improve detection signal strength, suppress vibration by pipelines.
• LCD display of temperature, pressure, instantaneous flow and accumulative flow.

Application

Precession Vortex Flowmeter Application

• Gas flow, oil field and urban gas distribution
• Petroleum, chemical, electric power, metallurgy industry
• Natural gas for many applications
• Compressed air, nitrogen gas
• Blast furnace gas, the cold wind, combustion-supporting air, mixed gas, flue gas, recycle gas etc

Technical Data

Table 1: Precession Vortex Flow Meter Main Technical Parameters

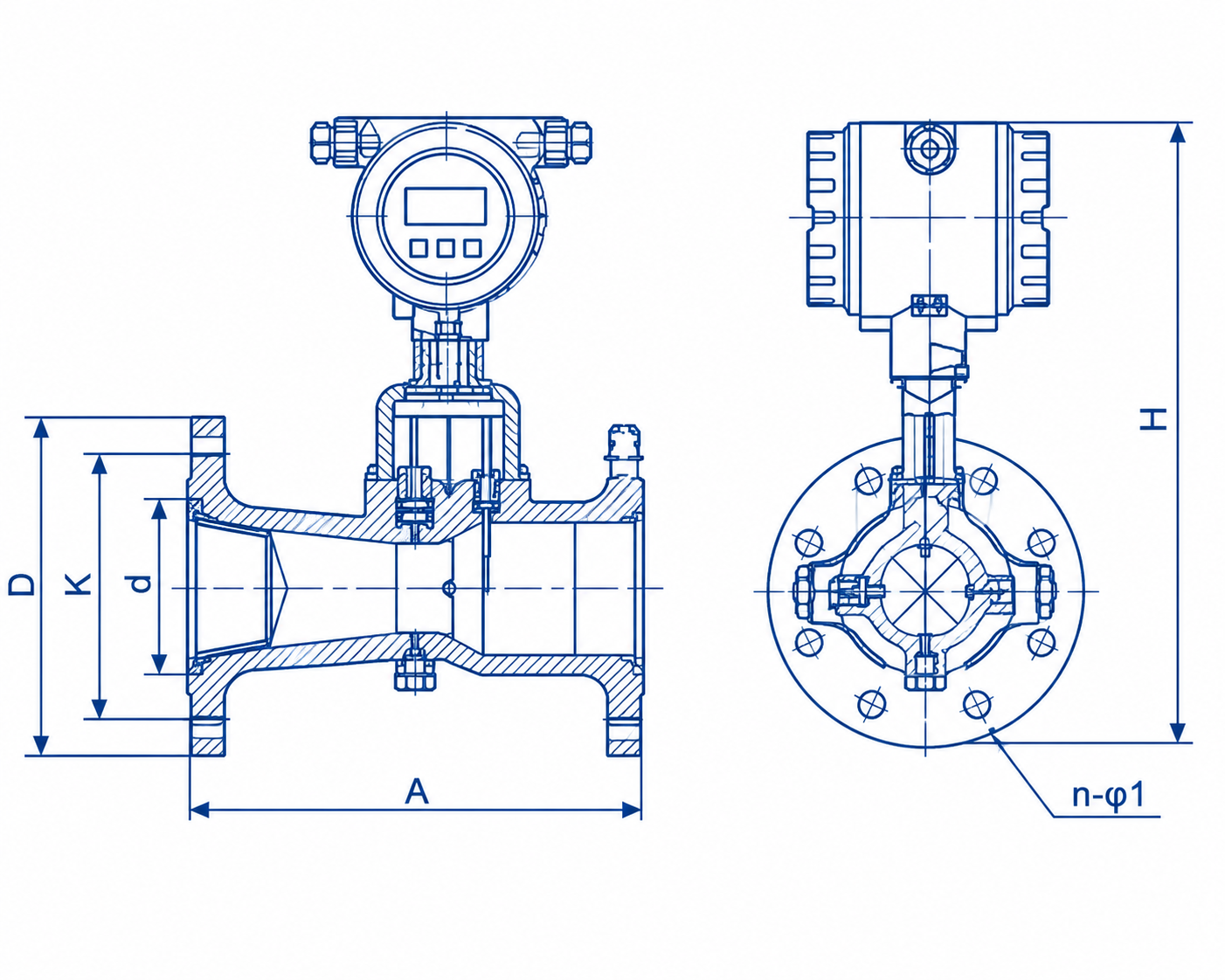

Table 2: Precession Vortex Flow Meter Size

Installation

1. Precession vortex flow meter installation requirements

1. The precession vortex flowmeter should be installed according to the flow direction mark.
2. The precession vortex flowmeter can be installed horizontally, vertically or inclined at any angle.

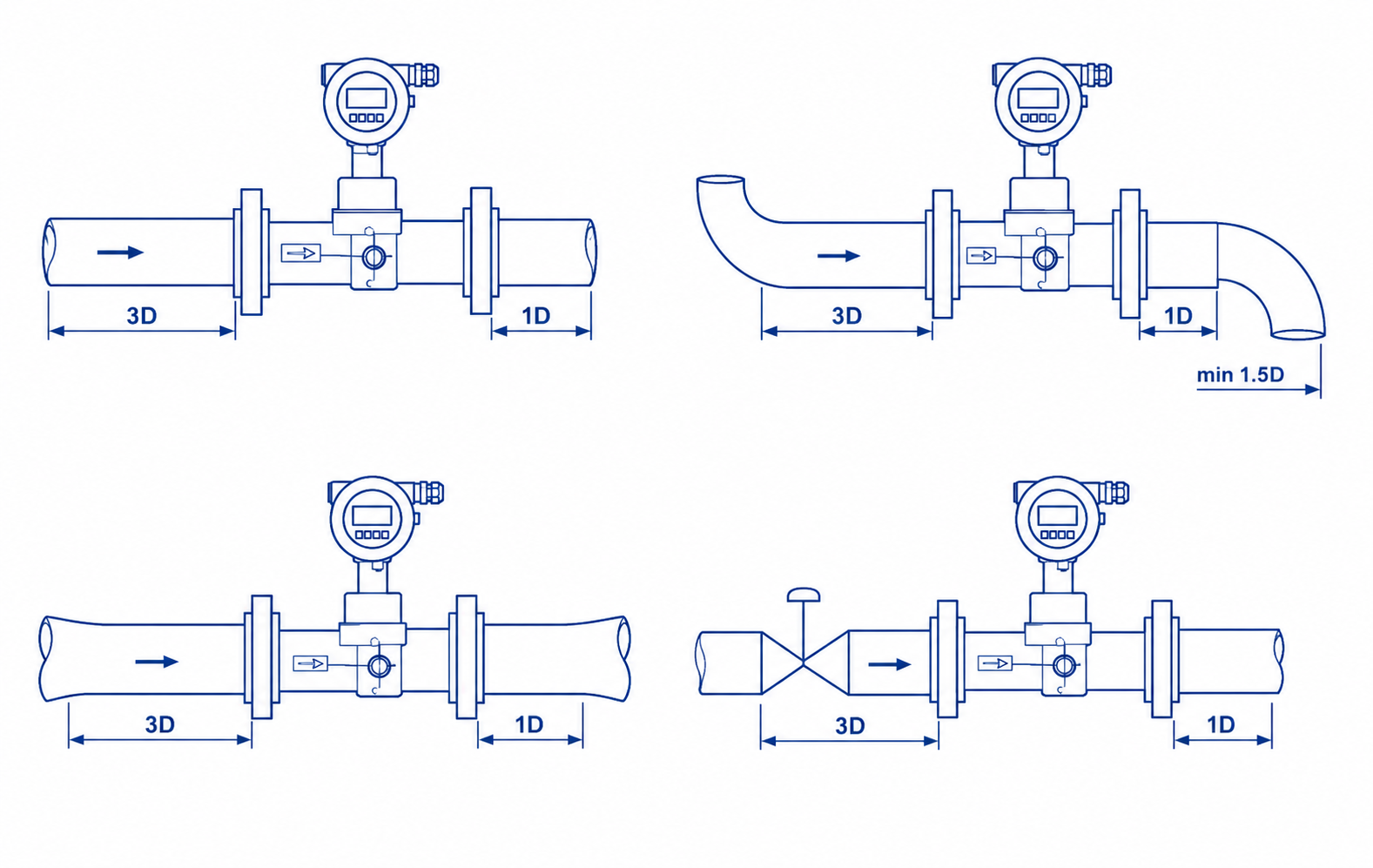

3. The requirements for upstream and downstream straight pipe sections are shown in Figure 1
4. Except for the larger particles or longer fibrous impurities in the tested medium, there is generally no need to install a filter.
5. There should be no strong external magnetic field interference and strong mechanical vibration around the installation of the precession vortex flowmeter.
6. The installation of the precession vortex flowmeter must be reliably grounded

2. Precession vortex flow meter maintenance

1. On-site installation and maintenance must comply with the warning "Do not open the cover when there is explosive gas", and turn off the external power supply before opening the cover.
2. When the pipeline is installed and tested for tightness, pay attention to the very high pressure that the pressure sensor of the vortex flowmeter can withstand, so as not to damage the pressure sensor.
3. When it is put into operation, the upstream and downstream valves of the flow meter should be opened slowly to avoid the instantaneous air flow damaging the meter and pipeline.
4. When the flowmeter needs to have remote signal transmission, it should be connected to the external power supply 24VDC strictly according to the requirements of 3 and 4 "Electrical Performance Index", and it is strictly forbidden to directly connect the 220VAC or 380VAC power supply to the signal input port.
5. The user is not allowed to change the wiring method of the explosion-proof system and arbitrarily twist each output lead connector;
6. When the flowmeter is running, it is not allowed to open the front cover to change the instrument parameters, otherwise it will affect the normal operation of the precession vortex flowmeter
7. Do not loosen the fixed part of the flowmeter at will.
8. When the product is used outdoors, it is recommended to add a waterproof cover.
