Accuracy: ±0.5%, ±0.2% Optional
Sensor Material: SS304, SS316L Optional
Signal Output: Pulse, 4-20mA, Alarm(optional)
Digital Communication: MODBUS RS485; HART
Power Supply: 24V DC/3.6V Lithium Battery
Krone-x Liquid Turbine Flow Meter is internally developed and perfected by Krone-x Instrument. Over the years, Krone-x Liquid Turbine Flow Meter has been commissioned in many parts of the world, received praise from end-users and industrial leaders.
Krone-x Instrument Turbine Flow Meter offers two accuracy classes, 0.5%R and 0.2%R. Its simple structure allows a small pressure loss and virtually no maintenance requirements.

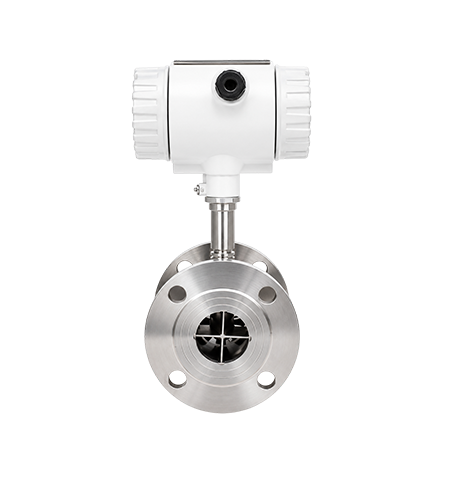

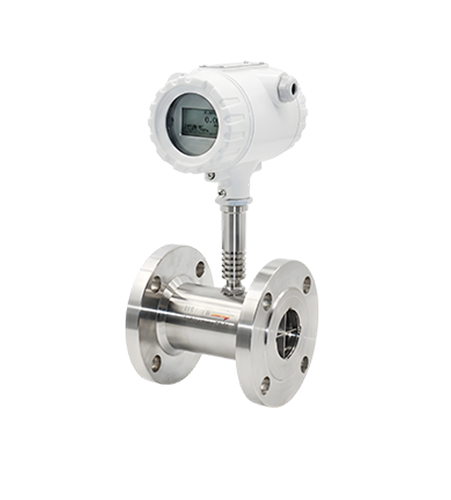

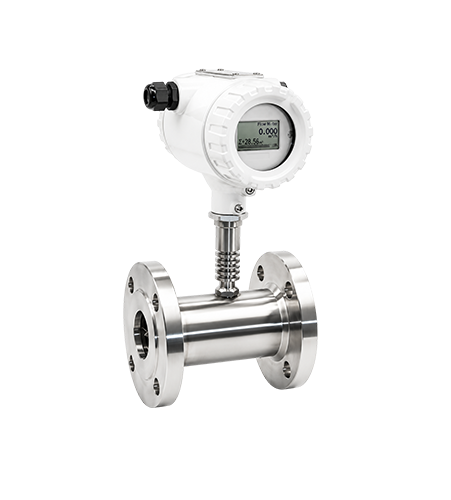

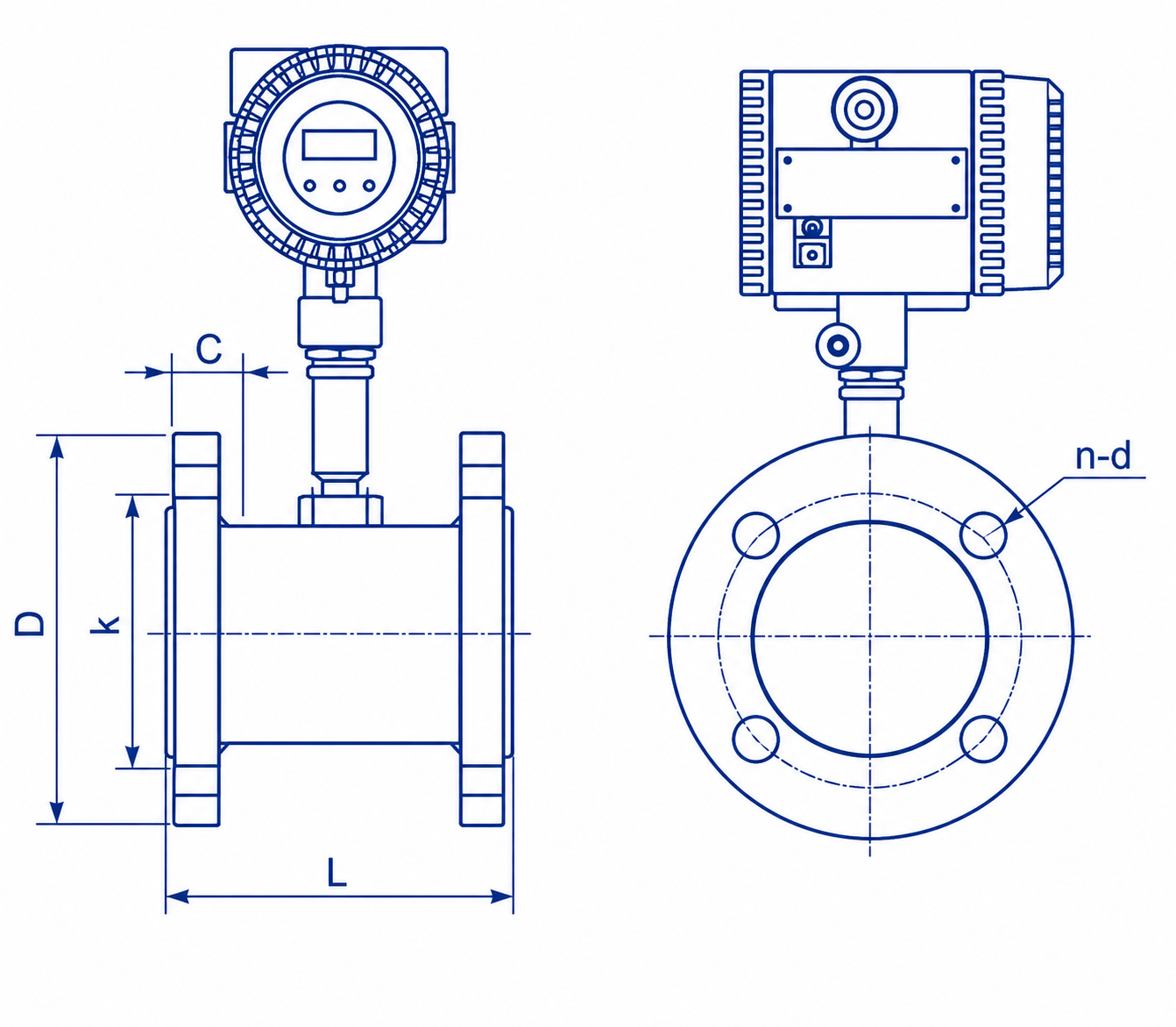

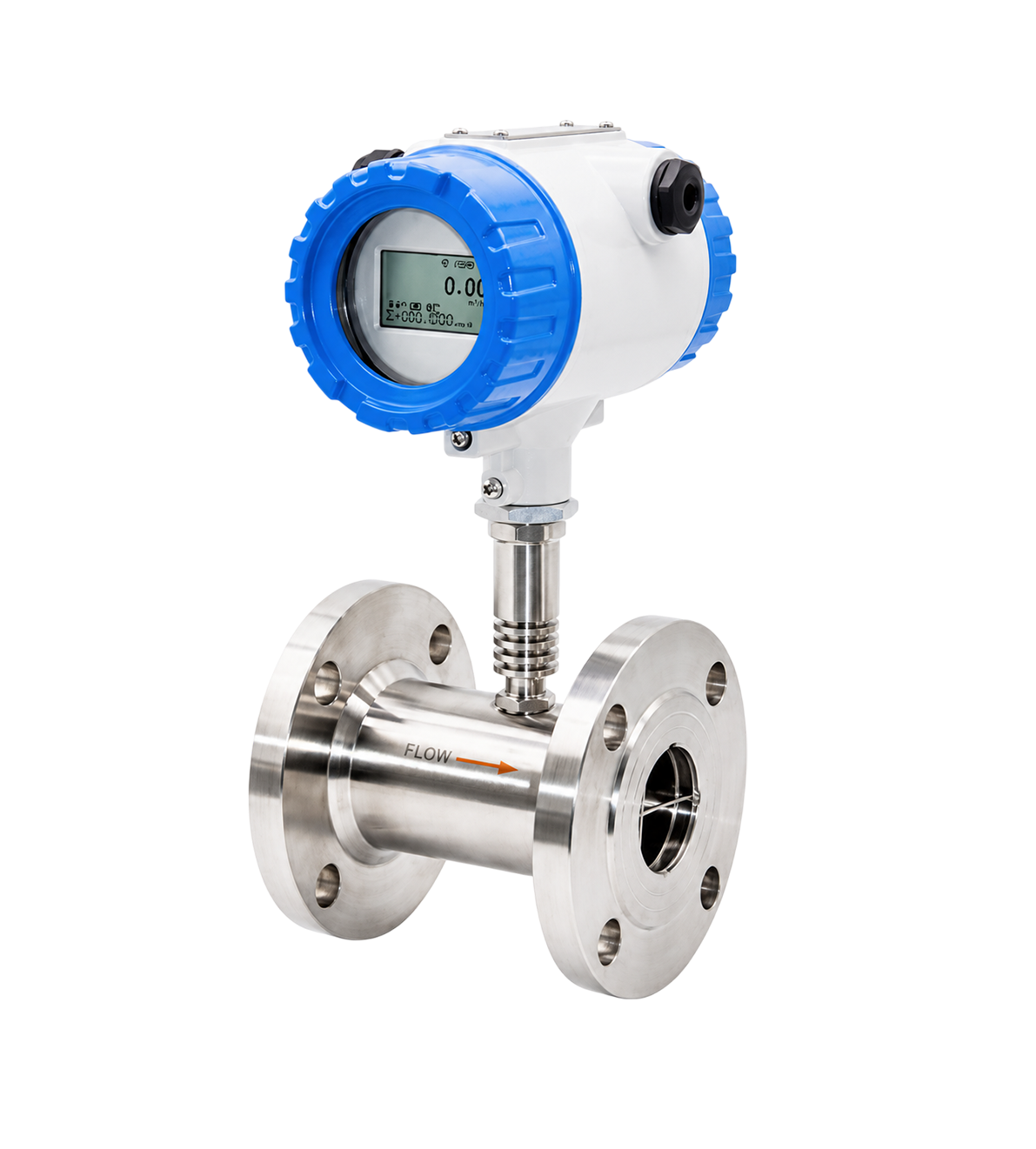

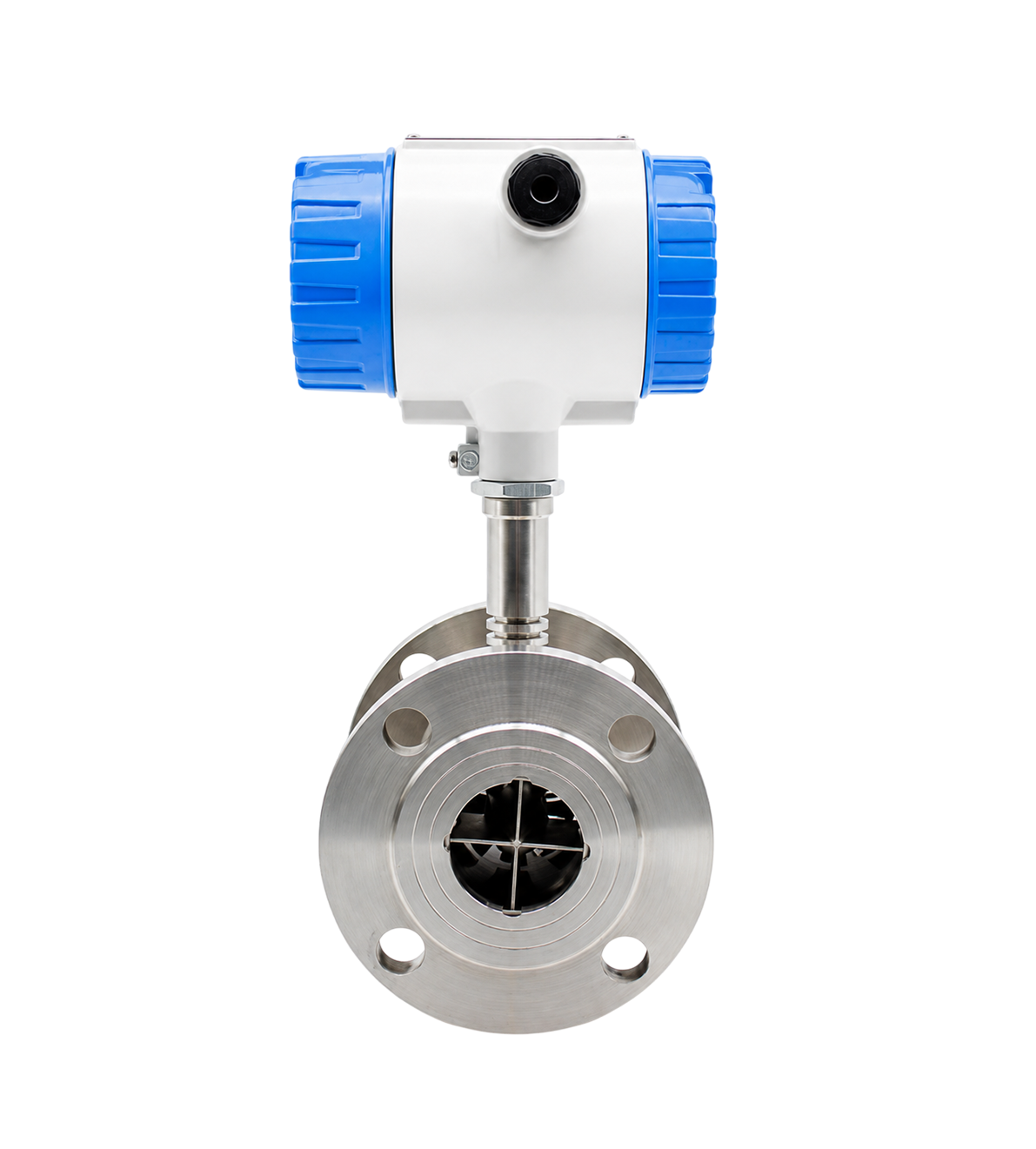

The Flange Type Turbine Flow Meter offers two types of converter options, Compact Type (Direct Mount) and Remote Type. Our users can select the preferred converter type depending on the commissioning environment.
Krone-x strives to provide high-quality products with economical cost.
Krone-x Liquid Turbine Flow Meter applies to viscous fluids, non-conductive fluids, solvents, liquefied gases and high-pressure applications.
Krone-x Instrument Liquid Turbine Flow Meter provides high accuracy of 0.2% R and a wide range of applications to non-conductive liquids, such as fuel oil, ultrapure water and gasoline. These make the turbine meter more popular compare to Electromagnetic Flow Meter in the oil industry, purifying process and distilleries.
The Krone-x Instrument meter also has an amazingly wide turndown ratio of 20:1, combined with its mechanical designings enables the meter to operate reliably in both high and low flow rates and produce excellent repeatability as low as 0.05%.
The Flange type connection Turbine Flow Meter is known for its application in oil & gas industry. It is often commissioned in off-shore and onshore oil exploration sites and transportation sites. It is compatibility with high temperature/pressure pipe and high durability makes it the most popular flow instrument in oil and gas industry.
Krone-x Instrument Liquid Turbine Flow Meters offers both standard SS304 body and SS316 body. Because of its wide working temperature and pressure range, it is capable of measuring various mediums and commissioning into extreme working conditions.
Krone-x Instrument Liquid Flow Turbine Meters are popular in the Oil & Gas industry, Chemical industry, and Water industry. The Flange connection version is compatible with High pressure/temperature commission sites. It is the most popular meter in upstream oil production and transportation, off-shore exploration, water supply, and much more.
Due to its high accuracy and fast response time, Krone-x Instrument Liquid Turbine is often integrated into the Industrial Internet of Things, together with valves and pumps to achieve smart process control, for example, solvents batching, blending, storage and off-loading systems. Kindly contact our sales engineers if there are questions related to integrating Krone-x Liquid Turbine Meters into your existing plant IOT.
| Size & Process Connection |
Thread connection: DN4, 6, 10, 15, 20, 32, 40, 50, 65, 80, 100 Flange connection: DN15, 20, 32, 40, 50, 65, 80, 100, 125, 200 Clamp connection: DN4, 6, 10, 15, 20, 32, 40, 50, 65, 80, 100 |
| Accuracy | ±0.5%, ±0.2% Optional |
| Sensor Material | SS304, SS316L Optional |
| Ambient Conditions |
Medium temperature: -20°C~+150°C Atmospheric pressure: 86KPa~106KPa Ambient temperature: -20°C~+60°C Relative humidity: 5%~90% |
| Signal Output | Pulse, 4-20mA, Alarm (Optional) |
| Digital Communication | RS485, MODBUS, HART |
| Power Supply | 24V DC / 3.6V Lithium Battery |
| Cable Entry | M20×1.5, 1/2" NPT |
| Explosion-proof Class | Ex d IIC T6 Gb |
| Protection Class | IP65, IP67 Optional |
| Diameter (mm) | Standard Range (m³/h) | Extended Range (m³/h) | Connection Standard (Optional) | Standard Pressure (MPa) | Customized Pressure Rating (MPa) |
| DN4 | 0.04~0.25 | 0.04~0.4 | Thread | 6.3 | 12, 16, 25...42 |
| DN6 | 0.1~0.6 | 0.06~0.6 | Thread | 6.3 | 12, 16, 25...42 |
| DN10 | 0.2~1.2 | 0.15~1.5 | Thread | 6.3 | 12, 16, 25...42 |
| DN15 | 0.6~6 | 0.4~8 | Thread (Flange) | 6.3, 2.5 (Flange) | 4.0, 6.3, 12, 16, 25...42 |
| DN20 | 0.8~8 | 0.45~9 | Thread (Flange) | 6.3, 2.5 (Flange) | 4.0, 6.3, 12, 16, 25...42 |
| DN25 | 1~10 | 0.5~10 | Thread (Flange) | 6.3, 2.5 (Flange) | 4.0, 6.3, 12, 16, 25...42 |
| DN32 | 1.5~15 | 0.8~15 | Thread (Flange) | 6.3, 2.5 (Flange) | 4.0, 6.3, 12, 16, 25...42 |
| DN40 | 2~20 | 1~20 | Thread (Flange) | 6.3, 2.5 (Flange) | 4.0, 6.3, 12, 16, 25...42 |
| DN50 | 4~40 | 2~40 | Thread (Flange) | 2.5 | 4.0, 6.3, 12, 16, 25...42 |
| DN65 | 7~70 | 4~70 | Flange | 2.5 | 4.0, 6.3, 12, 16, 25...42 |
| DN80 | 10~100 | 5~100 | Flange | 2.5 | 4.0, 6.3, 12, 16, 25...42 |
| DN100 | 20~200 | 10~200 | Flange | 1.6 | 4.0, 6.3, 12, 16, 25...42 |
| DN125 | 25~250 | 13~250 | Flange | 1.6 | 2.5, 4.0, 6.3, 12, 16...42 |
| DN150 | 30~300 | 15~300 | Flange | 1.6 | 2.5, 4.0, 6.3, 12, 16...42 |
| DN200 | 80~800 | 40~800 | Flange | 1.6 | 2.5, 4.0, 6.3, 12, 16...42 |
Before the installation, it is crucial to communicate with our sales engineers regarding the working conditions and medium the meter designs to measure.
The installation of the Krone-x Flange Type Liquid Turbine Flow Meter involves minimal effort. During installation, the users will need bolts, nuts, washers and appropriate tools for installation.
The user needs to keep in mind these three factors while carrying out the installation.
1. There should be at least ten pipe diameter lengths of straight pipe upstream of the Turbine Meter and five pipe diameter length of straight pipe length downstream of the Turbine Meter, with the same nominal diameter size.
2. Valves and Throttling devices needed to install downstream of the flow meter.
3. The arrow indicated on the meter body is the same as the actual flow.
If there are specific questions regarding the installation of the Krone-x Instrument Turbine Meter, kindly contact our sales engineers for assistance.

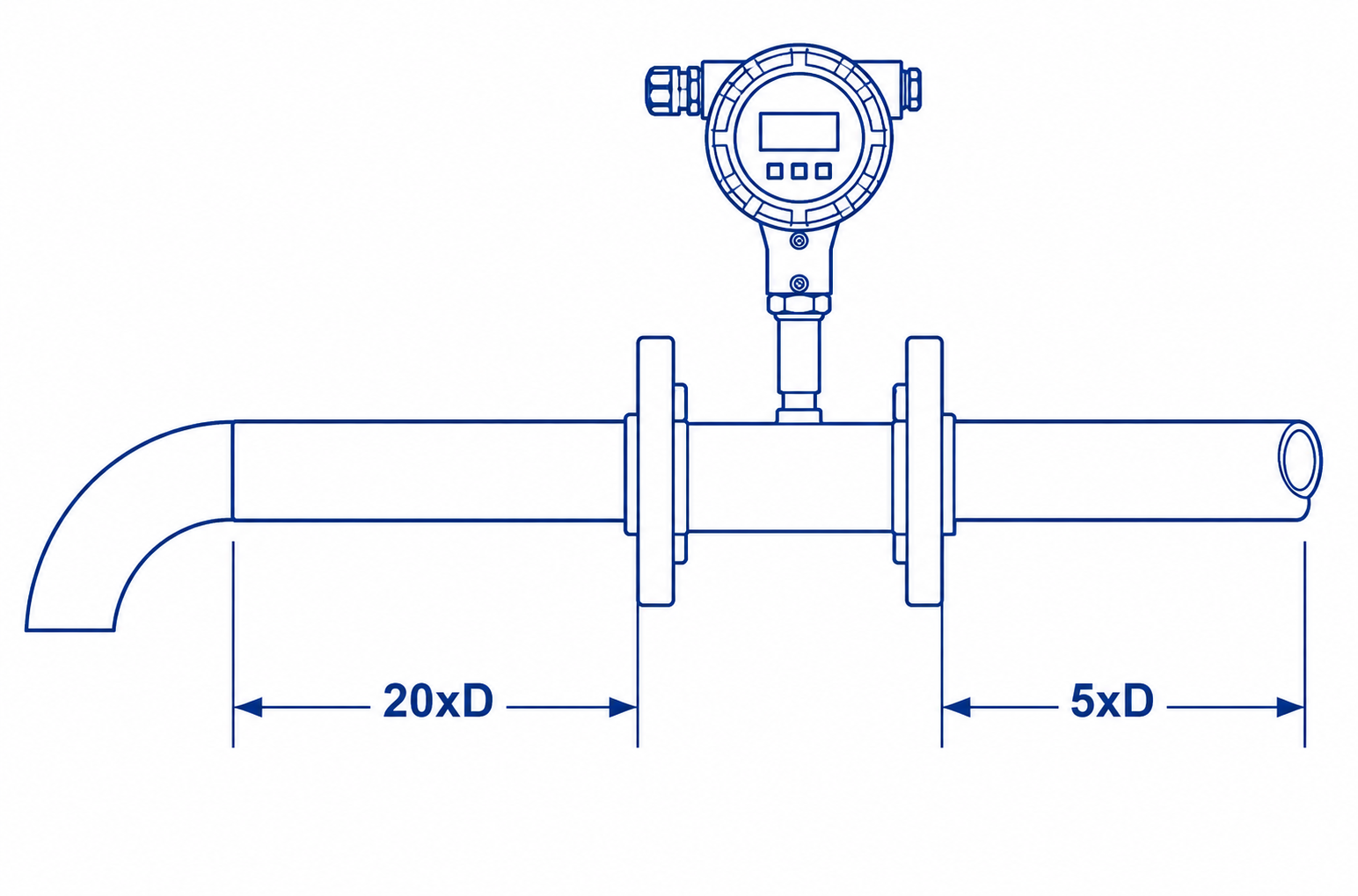

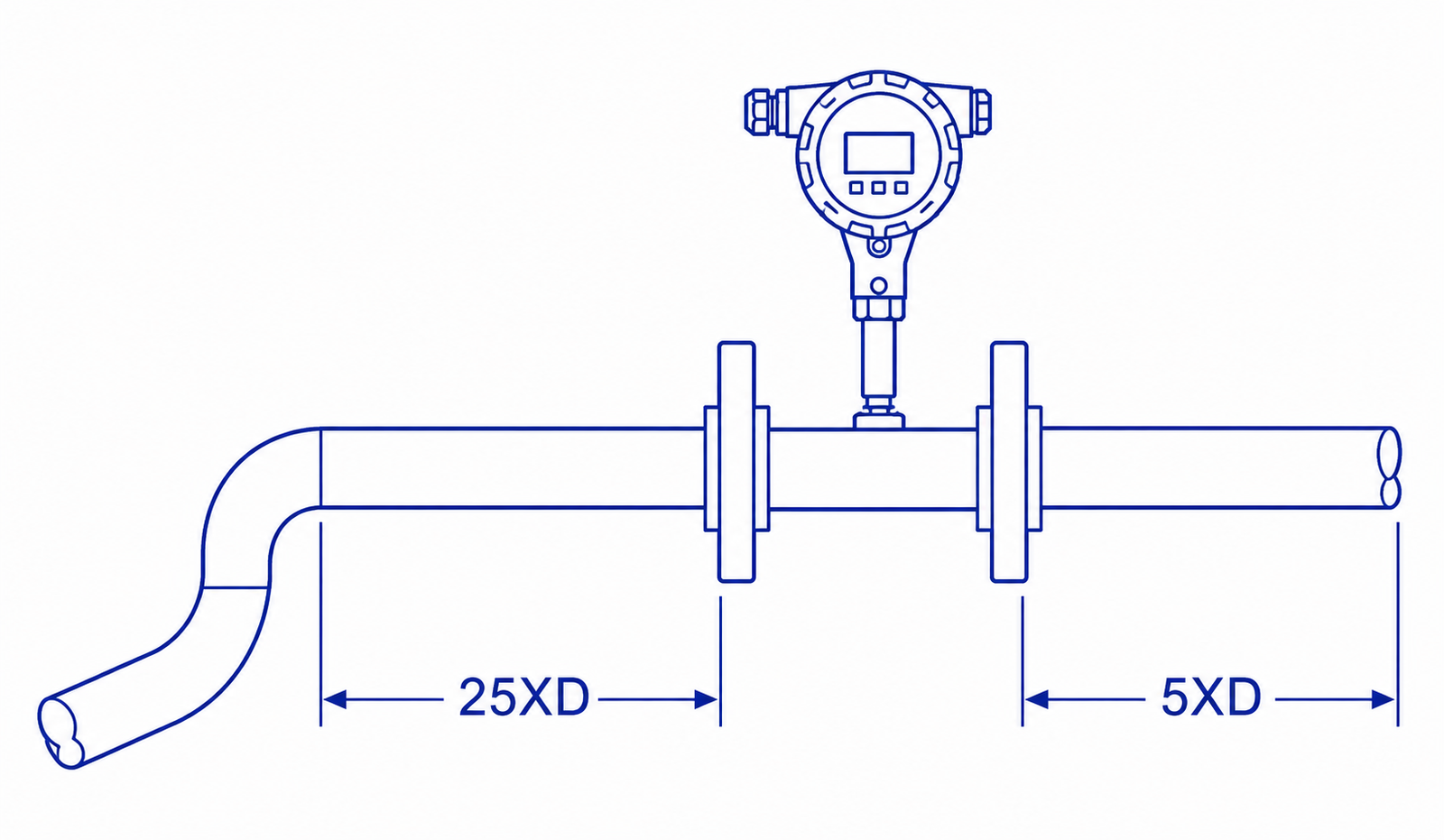

One 90° elbow

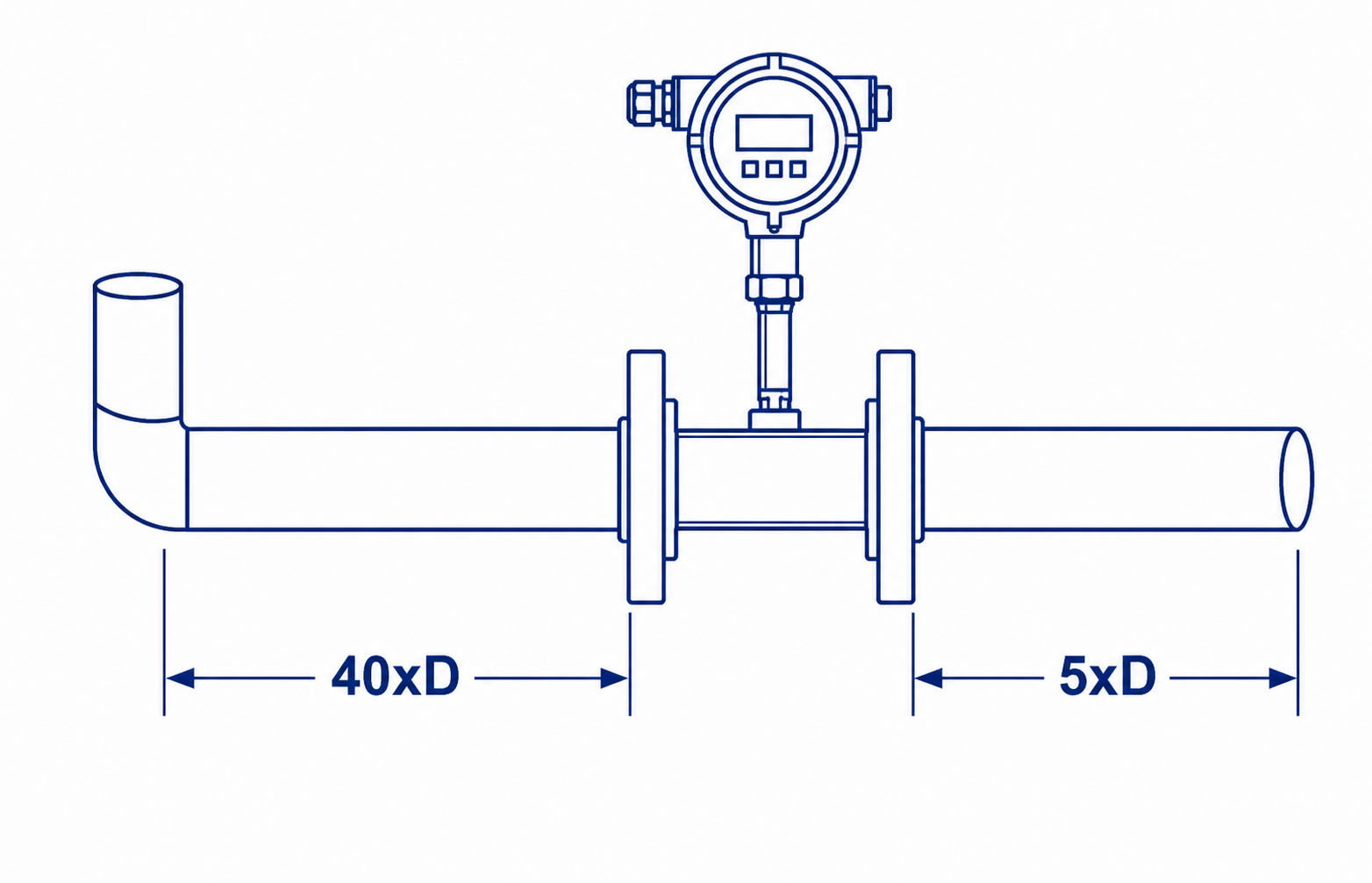

Two 90° elbows for two planes

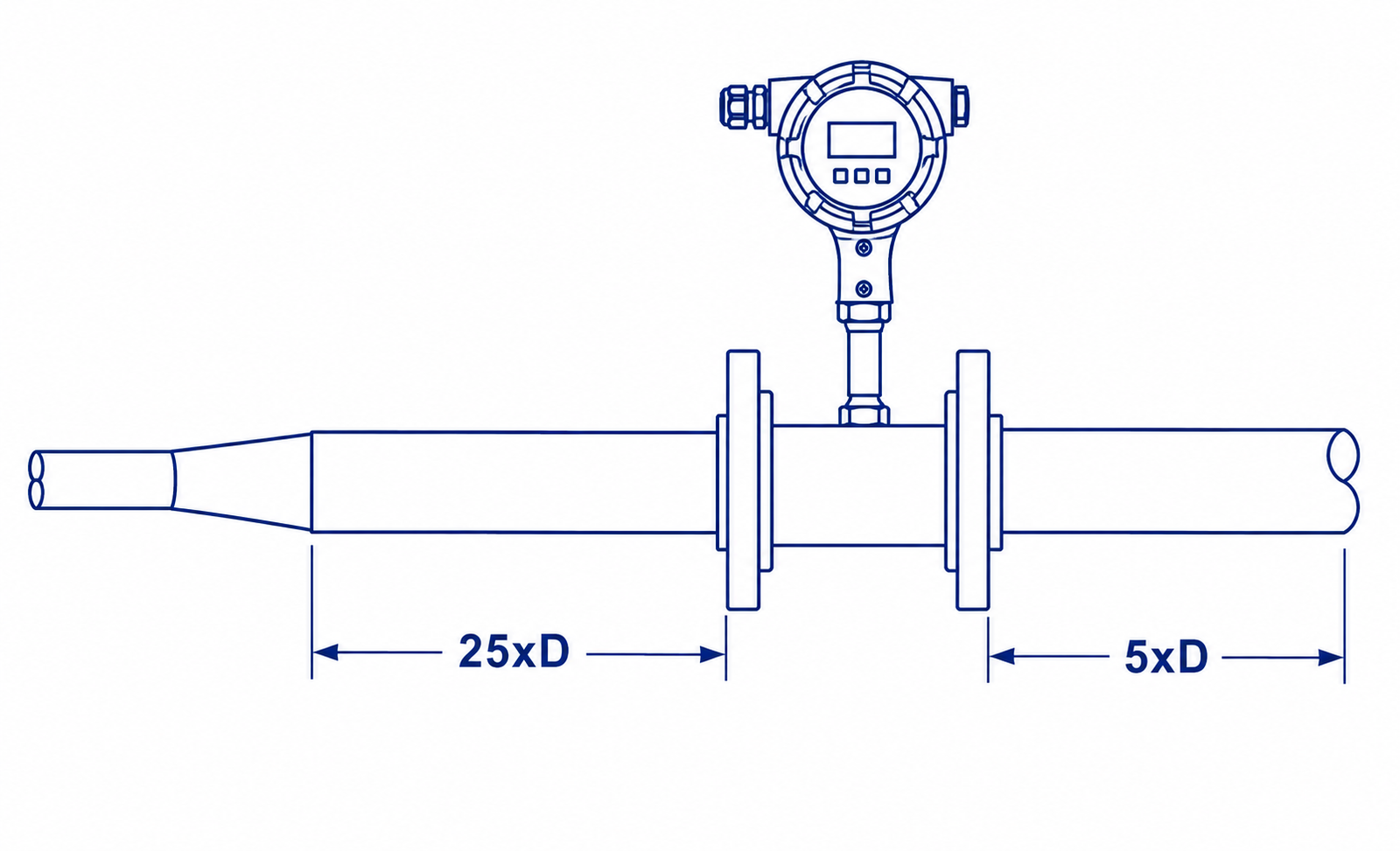

Concentric expander

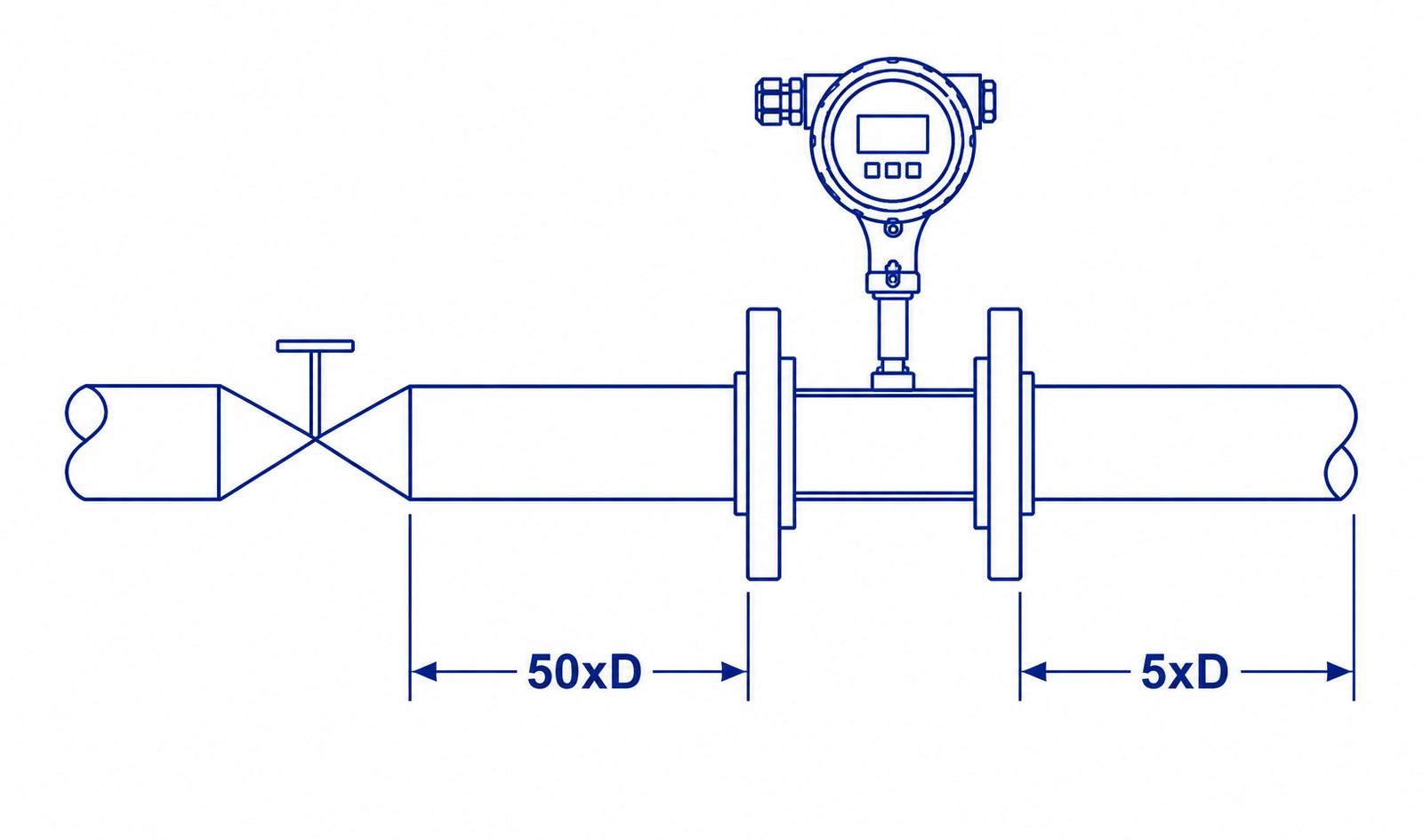

Control valve half-open

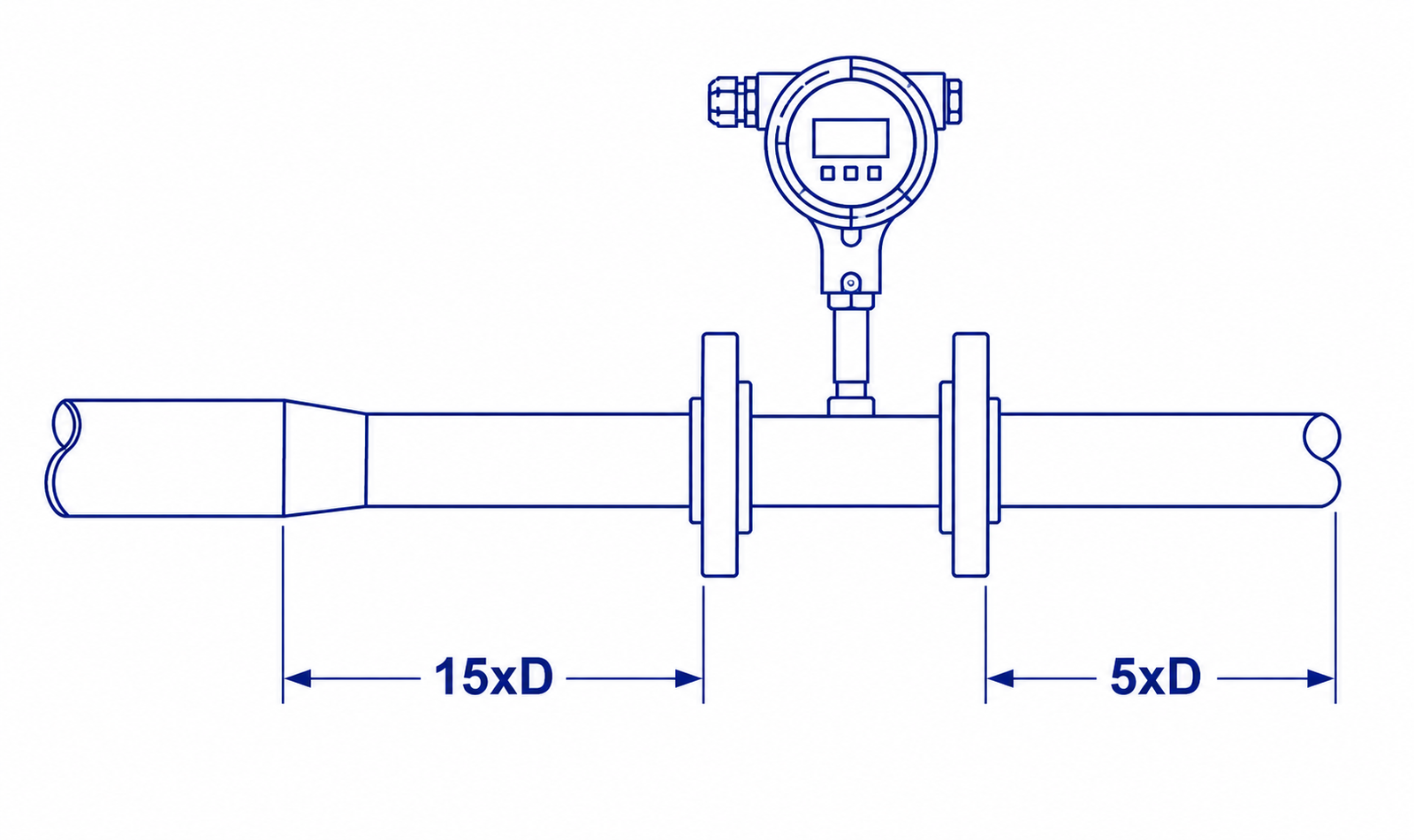

Concentric shrinkage wide open valve
Two 90° elbows for one plane
pKrone-x Liquid Turbine Flow Meter requires minimum maintenance
Cleaning and inspection of flow meter can be carried out by remove the Turbine Meter from the pipe.
Reinstallations are carried out similarly to the installation steps indicated above.
If the meter is damaged and repair is needed, kindly contact Krone-x Instrument Sales Engineers.
